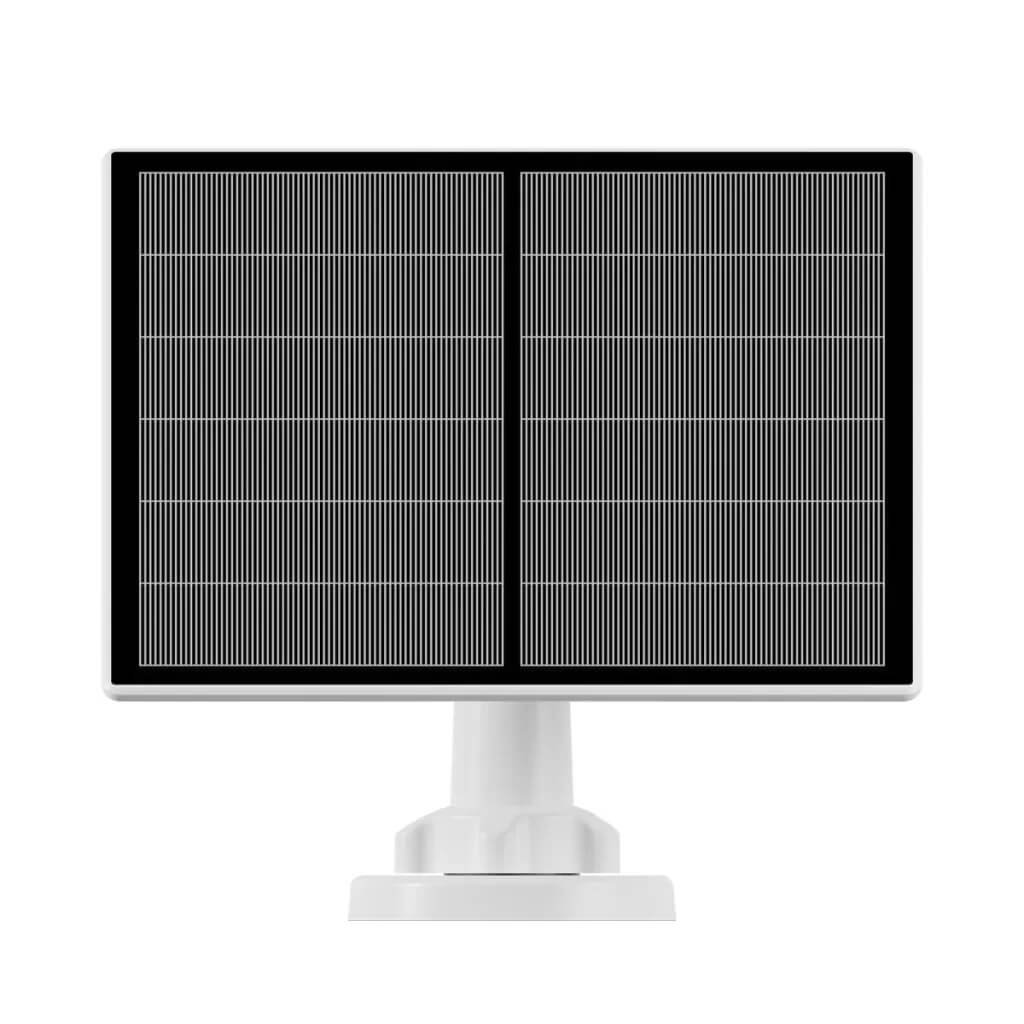

TESLA Solar Panel 5W

solar panel

wireless power supply for cameras
easy installation and setup
suitable even outside the power grid range
resistant to water and dust (IP65)

Ideal solution for remote locations

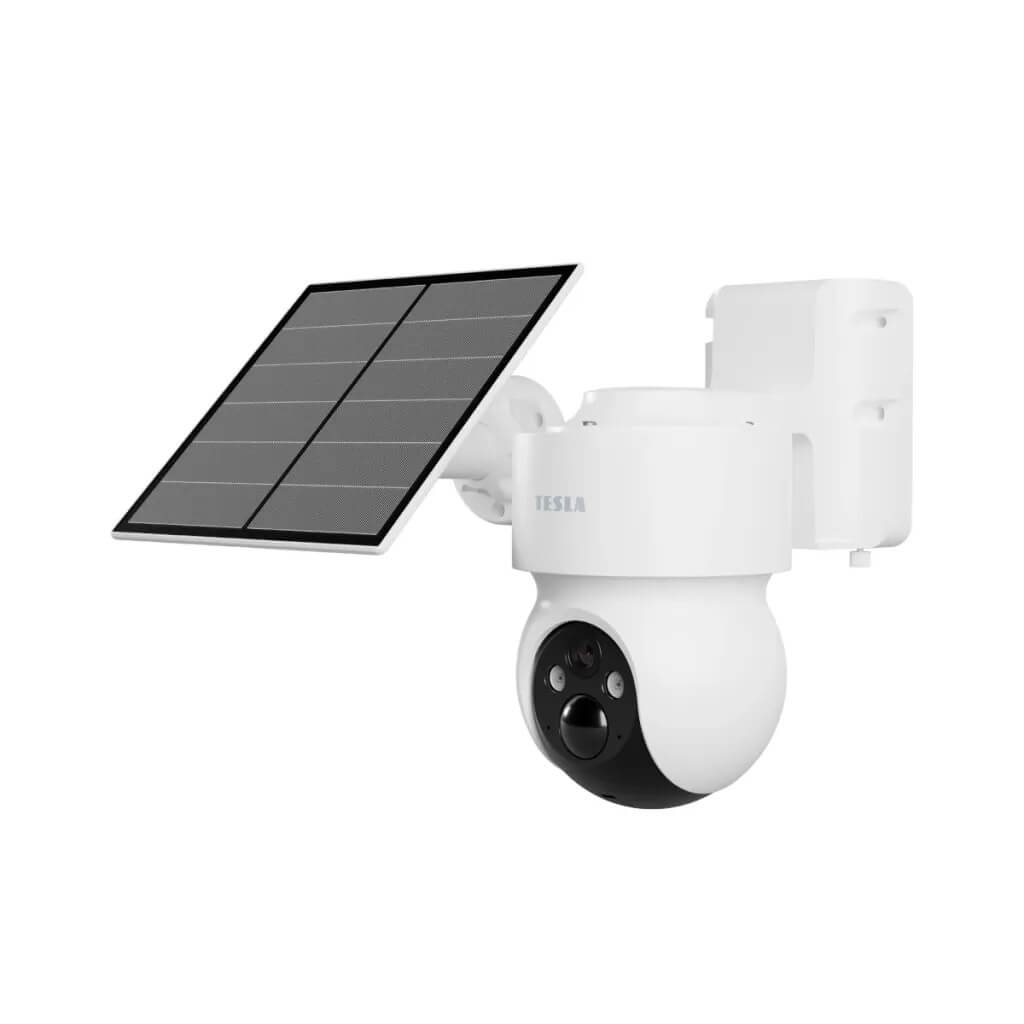

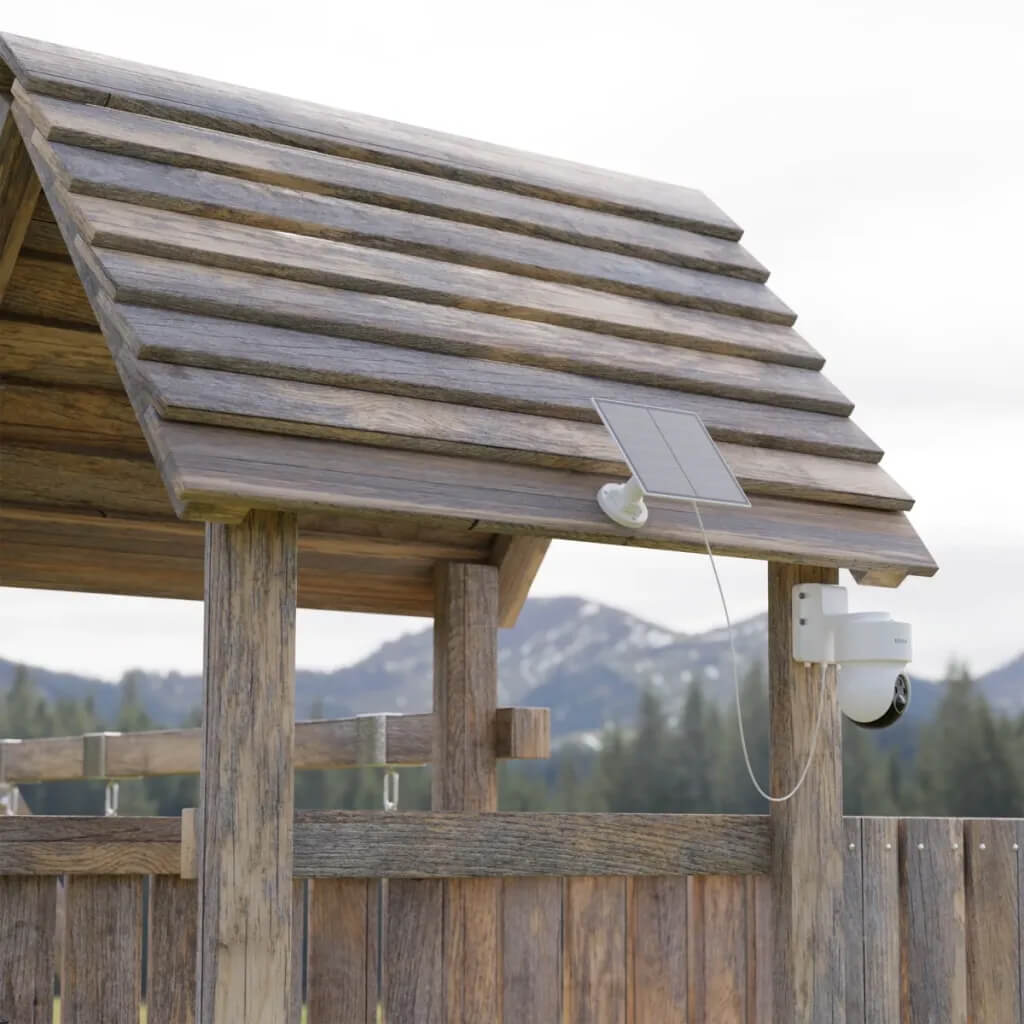

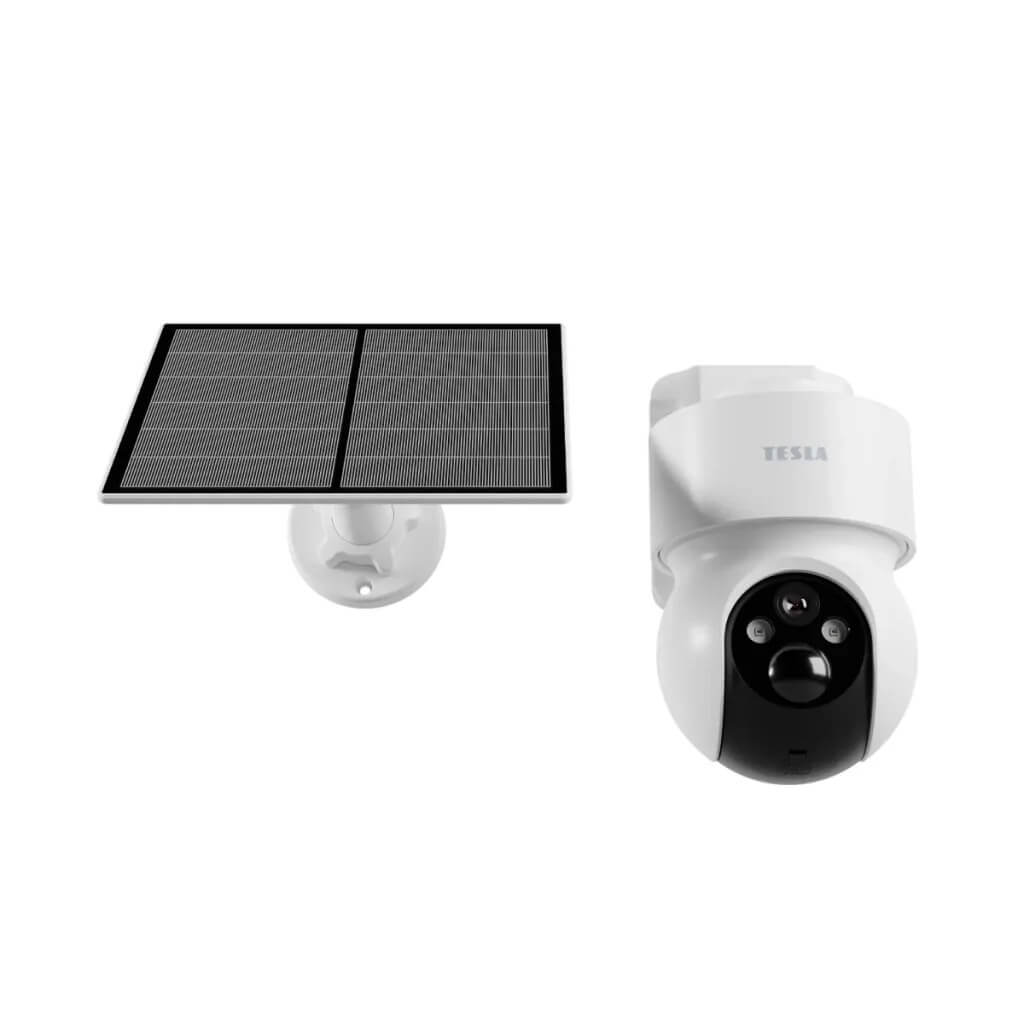

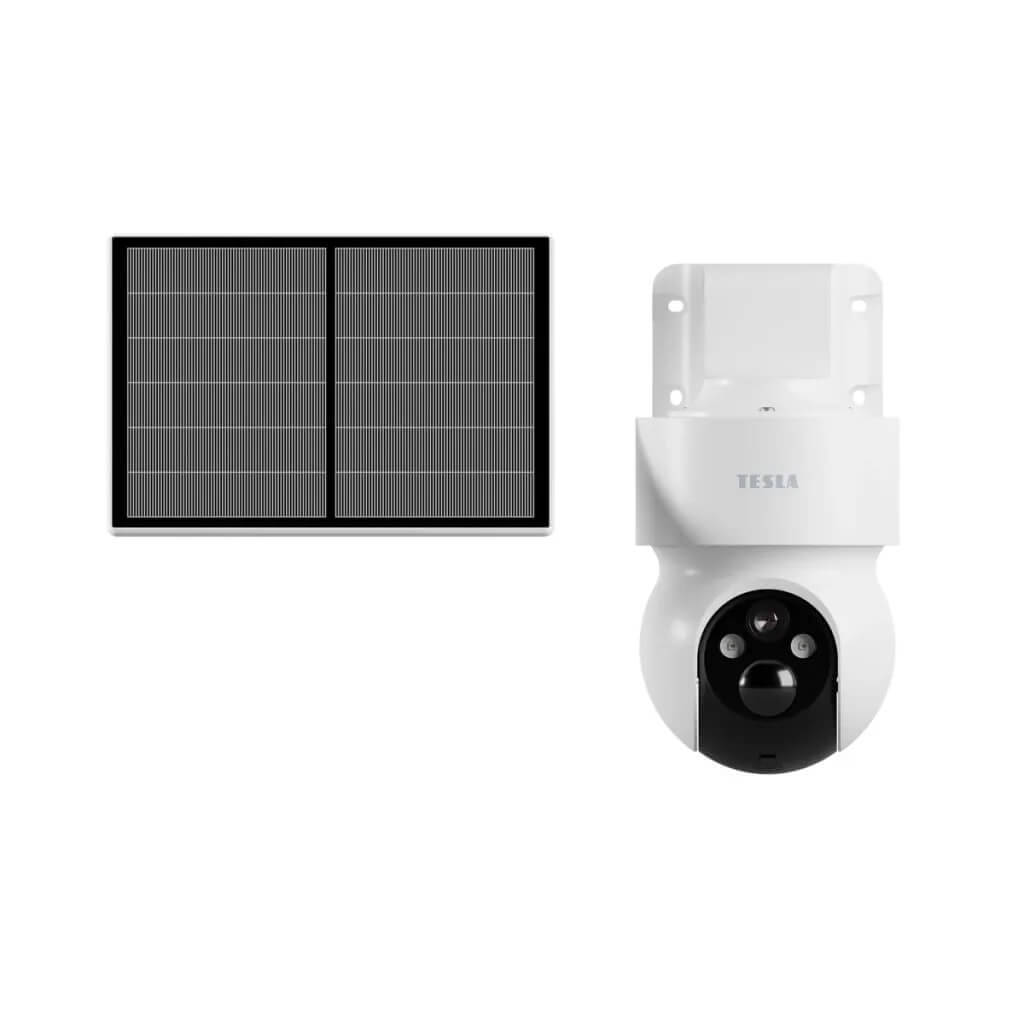

The solar panel is designed for use in places without access to the electrical grid, such as cottages, cabins, or plots of land far from civilization. When combined with the TESLA Smart Camera 360 4G Battery, which uses a data SIM card, it enables monitoring and security of these areas without the need for a Wi-Fi connection or access to the electrical grid. In addition, this panel can also be used to charge other devices that match its output parameters.

Reliable power supply

The solar panel provides a stable source of energy for battery-powered security cameras. Thanks to an output voltage of 5 V and power of 5 W, it ensures continuous device operation even when the sun is not shining. Just a few hours of direct sunlight per day are enough to keep the camera running without the need for frequent recharging.

Easy mounting and setup

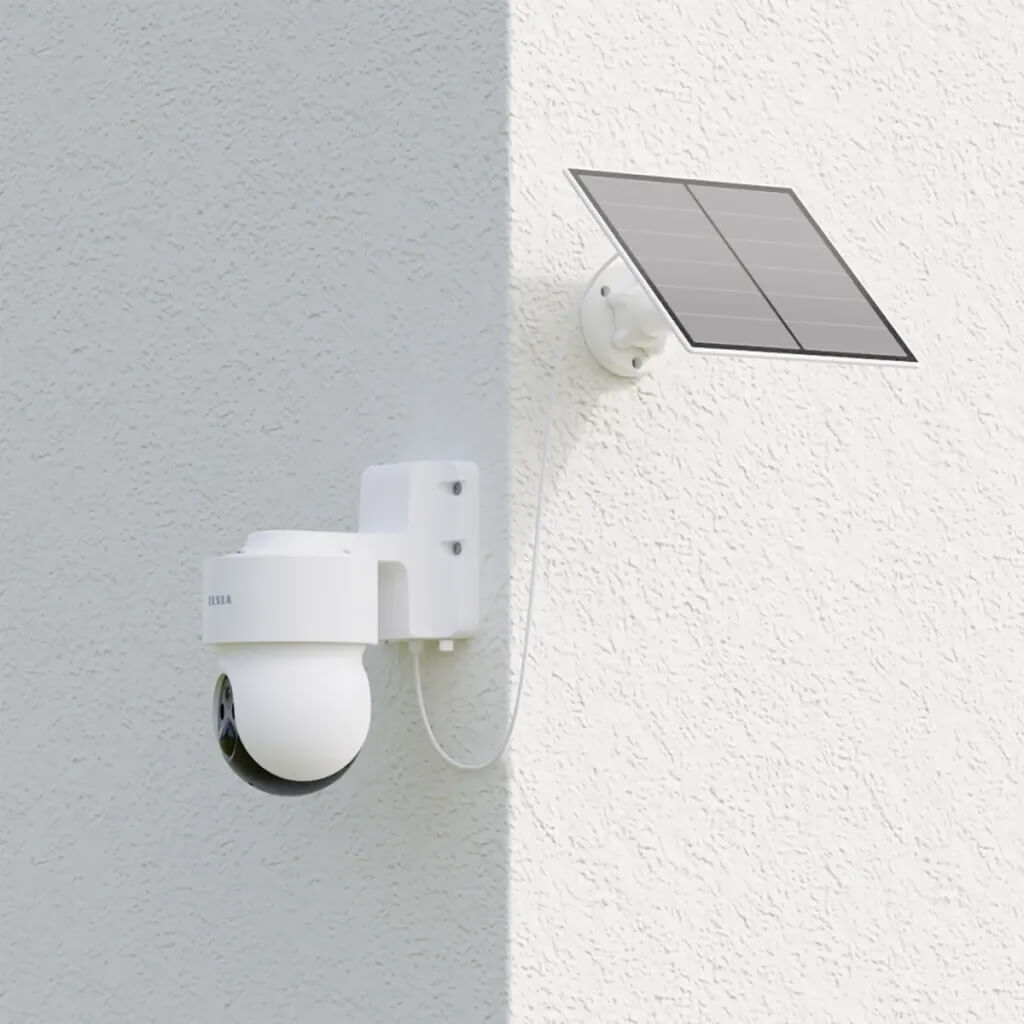

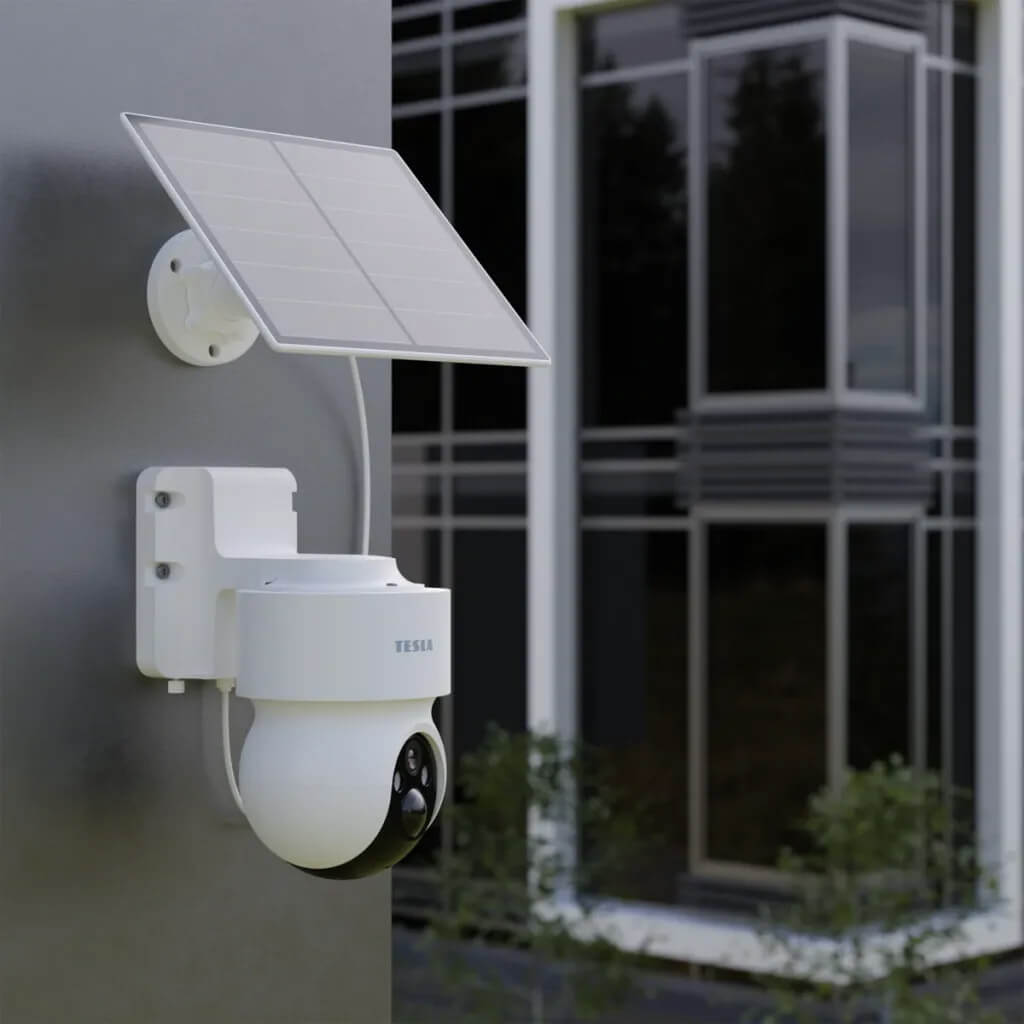

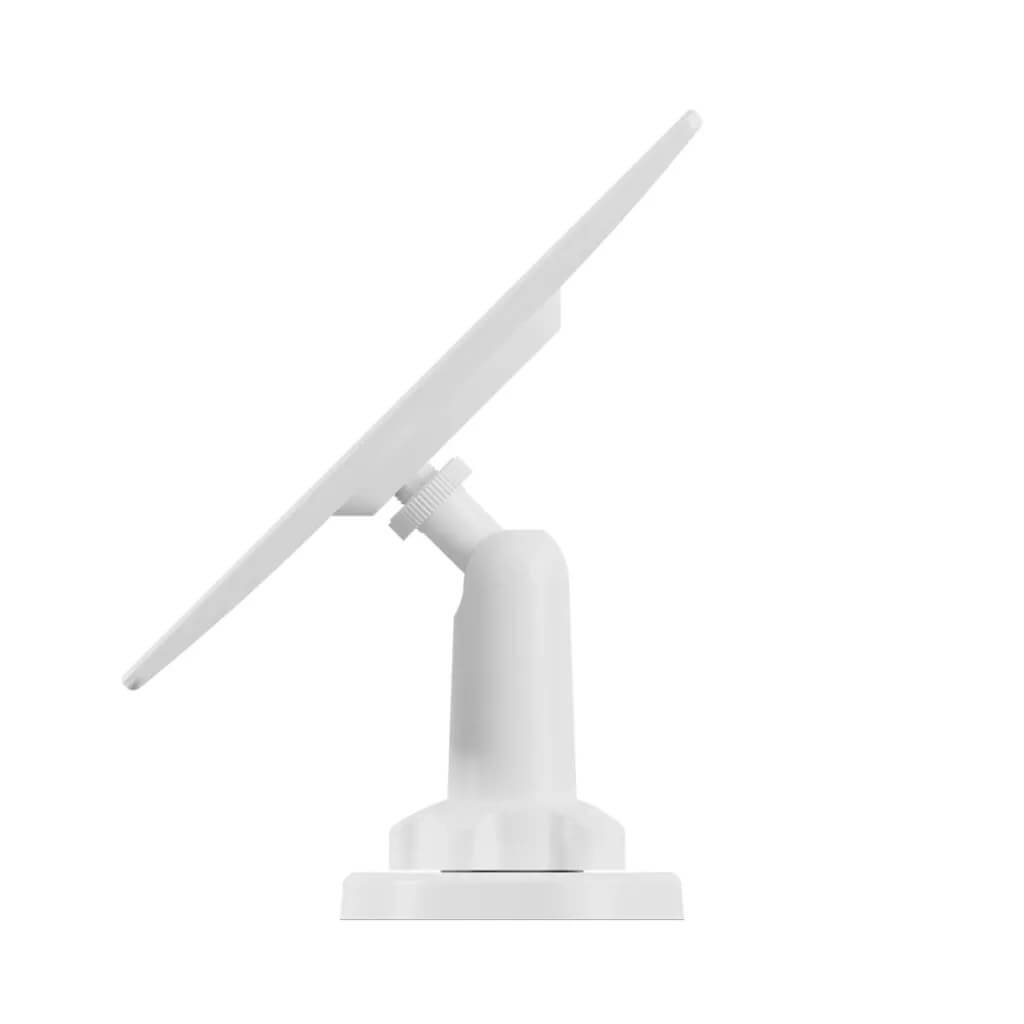

The package includes a mounting kit with a swivel joint that allows the panel tilt to be adjusted up to 90°. It is recommended to orient the panel to the south (in the Northern Hemisphere) and set a tilt of approximately 30° to maximize energy gain. The panel should be placed where it will be exposed to direct sunlight year-round without shading. Installation is quick and easy, without the need for specialized tools.

Online monitoring via the app

By connecting the solar panel with the camera and the TESLA Smart mobile application, you gain an overview of the battery status and panel performance. The app is available in Czech for both iOS and Android devices, allowing easy control and monitoring of the system from anywhere.

Durability and connectivity

The panel is equipped with a three-meter USB-C cable that ensures reliable connection with compatible cameras. The IP65-rated construction guarantees resistance to dust and water, making it suitable even for more demanding outdoor conditions.

Reduce your carbon footprint

By using solar energy, you contribute to reducing carbon dioxide emissions and limiting the consumption of non-renewable resources. This panel is an eco-friendly alternative that supports sustainable technologies and helps reduce operating costs.

Specifications

powers the camera using solar energy without the need for grid connection
ideal for remote locations without access to Wi-Fi and electricity
also works with other devices with compatible parameters
supports mobile monitoring via the TESLA Smart application

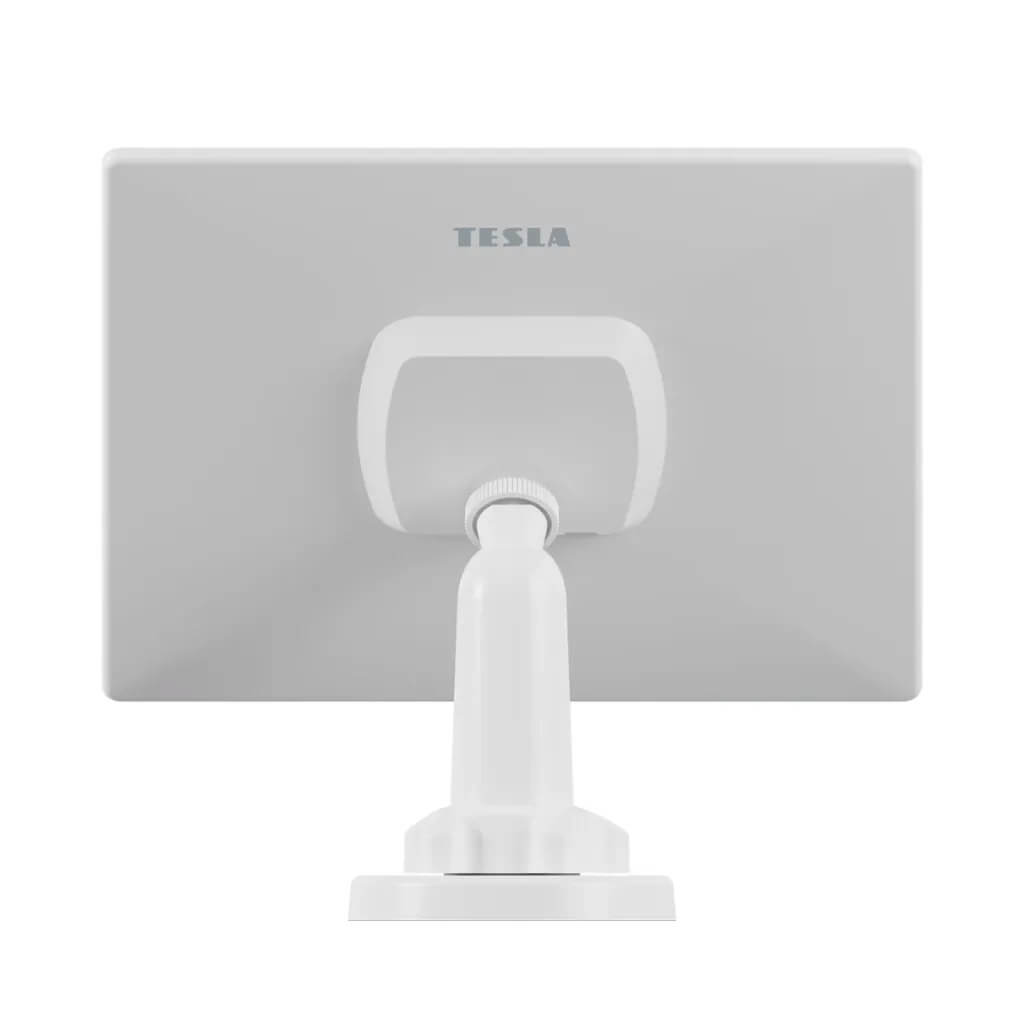

easy mounting using a universal joint
panel tilt adjustment up to 90°
recommended south orientation and 30° tilt for maximum performance
simple installation without special tools
possibility of horizontal and vertical panel orientation
regular cleaning of the front surface increases efficiency
designed for outdoor use thanks to high resistance (IP65)

Parameters

maximum power (Pmax): 5 W ±5%
open-circuit voltage (Voc): 4.95–5.35 V
operating voltage: 4.5 V
operating current: 1.02 A
operating temperature: −20 °C to 50 °C
cable length: 3 m
connector: USB-C
dimensions: 174 × 163 × 12.5 mm
weight: 288 g

Package contents

solar panel
universal joint
circular nut
locking nut
base
screws
wall plugs
user manual
